Hitec HS-81 Standard Micro Analog Servo
By Hitec
$16.99
Description
We would suggest this servo for the Worm Burner kit as well as other applications
Product Details

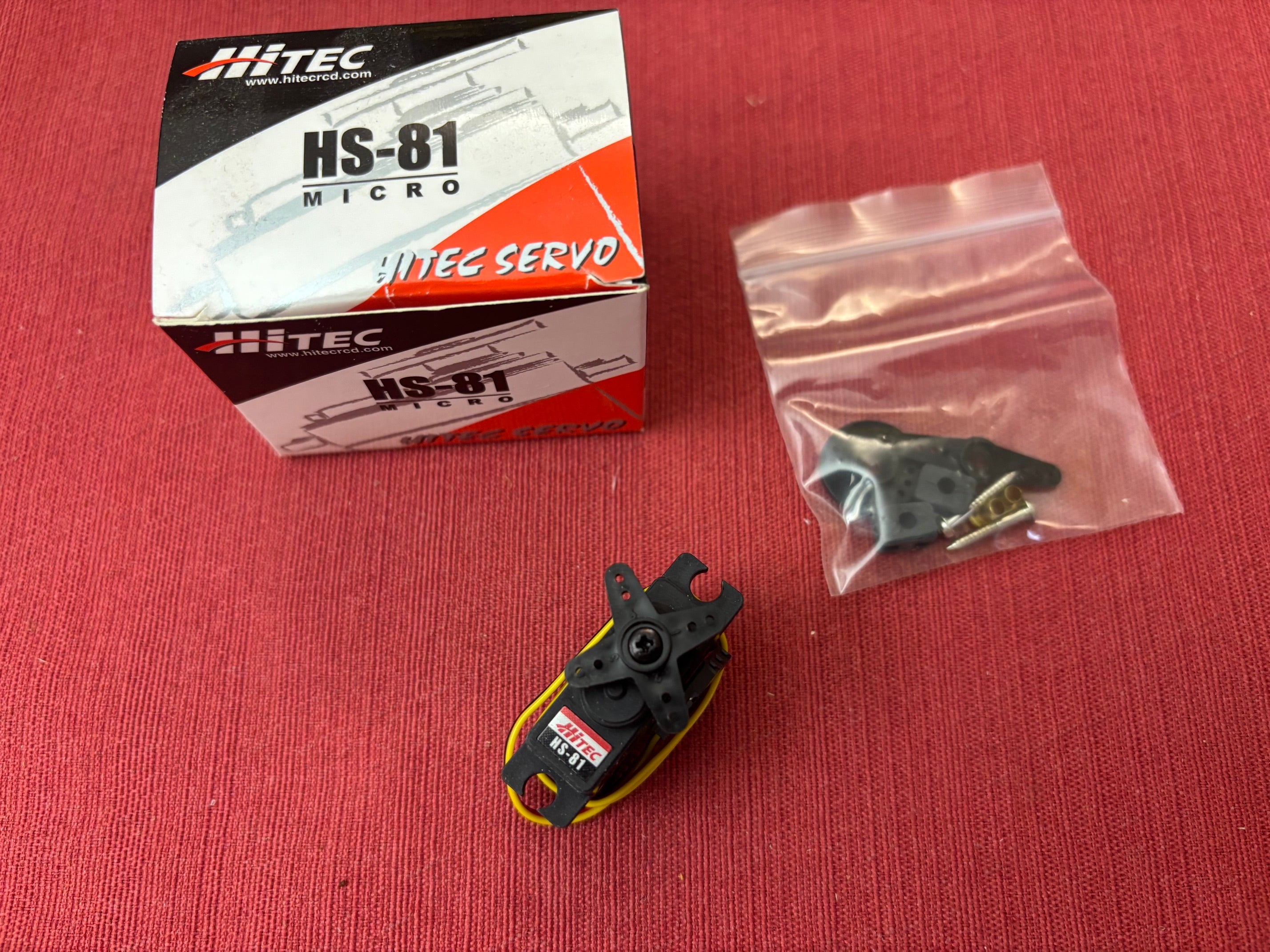

HS-81 16.6g Nylon Gear Analog Micro Servo
HS-81, resin gears. A popular servo for smaller airplanes, heli’s, boats, small cars and trucks, the HS-81 offers a fine balance between speed and torque.
-
Key Specifications
- Operating Voltage: 4.8V ~ 6.0V
- Speed: \(0.11\text{ sec} \text{ @ } 60^\circ\) (4.8V) / \(0.09\text{ sec} \text{ @ } 60^\circ\) (6.0V)
- Torque: 36.00 oz-in (2.6 kg-cm) at 4.8V | 42.00 oz-in (3.0 kg-cm) at 6.0V
- Dimensions: 1.17" × 0.47" × 1.16" (29.8 × 12 × 29.5mm)
- Weight: 0.58 oz (16.6g - 17g)
- Gear Material: Nylon
- Spline Count: 24-Tooth
